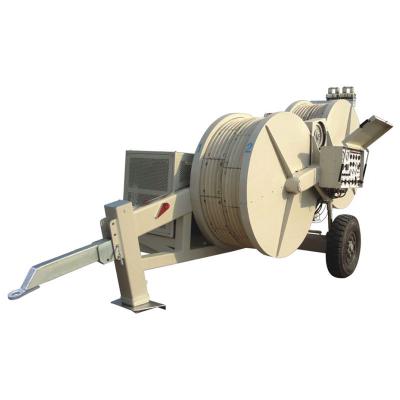

SA-YZ2×40B Hydraulic Tensioner

• Essential parameter
• Maximum Tension(kN):2×40 or 1×80
• Continuous Tension(kN):2×35 or 1×70
• Maximum speed (km/h):5
• Bull wheel bottom of groove diameter(mm):Φ1500
• Number of grooves:2×5
• Maximum pull-back (kN):2×40 or 1×80
• Maximum pull-back speed（km/h):2×1.5
• Maximum suitable conductor diameter (mm): Φ40
• Engine power /speed (kW/rpm):51/2500
• Dimensions (mm): 4500×2200×2800
• Weight(kg):4850

• Uses
• it’s used for stringing various conductors and earth wires.suitable for stringing one conductor or two bundle conductors
• Feature
• Bull wheel with wearproof MC nylon lining segments.
• Infinitely variable tension control and constant tension conductor stringing .
• Spring applied hydraulic released brake acts automatically in case of hydraulic failure to ensure safety.
• Attached two sets of hydraulic power output interface to connect hydraulic conductor reel stand .

• Main component
• Engine :Beinei Deutz air cooled diesel engine .
• Main pump/motor : Rexroth (BOSCH)
• Reducer : RR (Italian)
• Main hydraulic valve : Rexroth (BOSCH)
• According to actual needs,it can configure mobile control consoles , it’s easy for one operator to control 2 machines simultaneously ,which facilitates 4-conductor–stringing operation using two machines .the control consoles item number is 07193
